Casterbpt A Set of 6 inch Mecanum Wheels 152 mm Mecanum Wheels with Ball Bearing CB14156
This set of 152mm Mecanum wheels including 4 pieces that are 2 right wheels and 2 left wheels. One right and left can be assembled on each side of your robot. Each 6 inch Mecanum Wheels is connected to its own, independent motor and driven independently. Every of the four 152 mm Mecanum Wheels include a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.6 inch Mecanum wheel using a standard chssis shape and powering each Mecanum Wheel with a different motorr, which can be capable of moving in any direction, no need to change the directions the wheels spin. This design enables the wheel to propel your robot forward, backward and directly sideways.

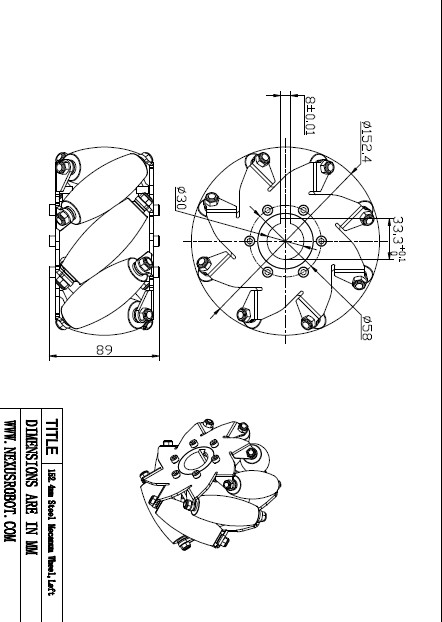

6 inch Mecanum Wheels Specifications:
Specifications:
Diameter: 152mm（6 inch)
Width: 89
Number of Rollers: 8
Number of Plates: 2
Body material: Stainless steel
Roller material: Rubber
Spacer material: Aluminum
Length of roller: 77mm
Net weight: 2.3kg x4
Load capacity: 150kg/Set
This 152mm Mecanum Wheels Compatible Hubs:
1. If the mecanum wheels is used to be connected with robot and servo motor, we provide free accessorie of a plastic cross axle and an axle center hub, The Cross axle is to be connected with robot’s NXT, and the axle center hub is to be connected with servo motor.
2. If the mecanum wheels is used to be connected with DC Motor, you can use following hubs:
6mm Hub H18007 (Need to purchase additional)
8mm Hub H18008 (Need to purchase additional)
10mm Hub H18009 (Need to purchase additional)
12mm Hub H18010 (Need to purchase additional)
16mm Hub H18012 (Need to purchase additional)
6 Inch Mecanum Wheels Packing List:
2 x Left 6 inch Mecanum Wheels
2 x Right 6 inch Mecanum Wheels
