152mm Aluminum Mecanum Wheels 6 inch Mecanum Wheels set basic CB14165

$189.95 $169.95

Diameter:152.4mm(6 inch)
Width:55.52mm
Number of Rollers per wheel:15
Number of Plates per wheel:2
Body material: Aluminium alloy
Roller material: Nylon+TPR
Spacer material: Nylon
Length of roller:38.1mm
Net weight per wheel:600
Load capacity per wheel:15Kg
Compare
Add to wishlist
SKU: CB14165 Categories: 6" Mecaunm Wheels, Mecanum wheels, Robot Wheels Tags: 152mm Aluminum Mecanum, 152mm Aluminum Mecanum Wheels, 152mm mecanum wheels, 6 inch mecanum wheels, Mecanum Wheels
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
Description

152mm Aluminum Mecanum Wheels 6 inch Mecanum Wheels

The aluminum mecanum wheel include a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel. Mecanum wheel using a standard chssis shape and powering each wheel with a different motor, which can be capable of moving in any direction, no need to change the directions the wheels spin. This design enables the wheel to propel your robot forward, backward and directly sideways.
6 Inch Mecanum Wheels Specifications:
Diameter:152.4mm(6 inch)
Width:55.52mm
Number of Rollers per wheel:15
Number of Plates per wheel:2
Body material: Aluminium alloy
Roller material: Nylon+TPR
Spacer material: Nylon
Length of roller:38.1mm
Net weight per wheel:600
Load capacity per wheel:15Kg

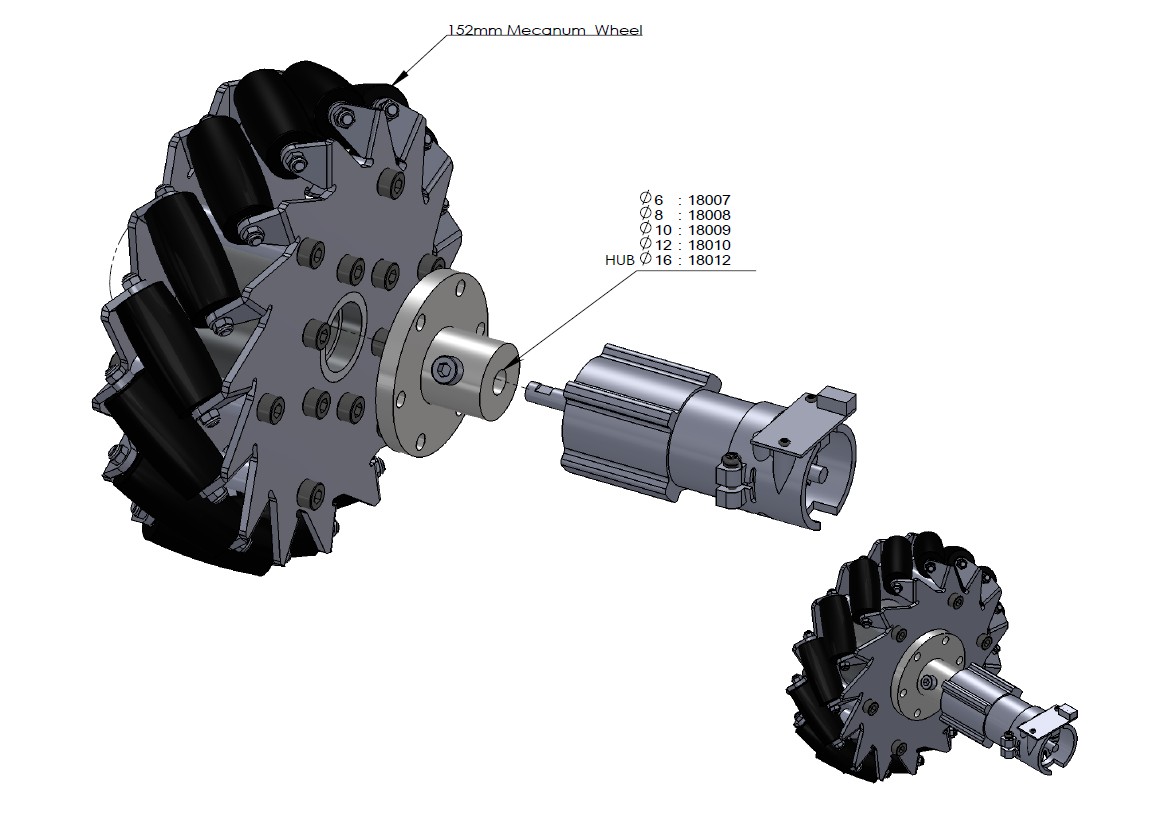

This 152mm Mecanum Wheels Compatible Hubs:
1. If the mecanum wheels is used to be connected with robot and servo motor, we provide free accessorie of a plastic cross axle and an axle center hub, The Cross axle is to be connected with robot’s NXT, and the axle center hub is to be connected with servo motor.
2. If the mecanum wheels is used to be connected with DC Motor, you can use following hubs:
6mm Hub H18007 (Need to purchase additional)
8mm Hub H18008 (Need to purchase additional)
10mm Hub H18009 (Need to purchase additional)
12mm Hub H18010 (Need to purchase additional)
16mm Hub H18012 (Need to purchase additional)

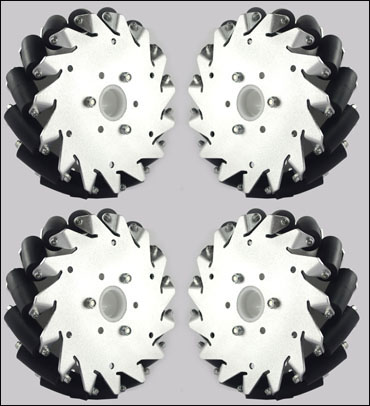

6 Inch Mecanum Wheels Packing List:
2 x Left 6 inch Mecanum Wheels
2 x Right 6 inch Mecanum Wheels



Additional information
Weight3 kg
