Casterbot A Set of 150 Kg Load Industrial 6 Inch Mecanum Wheels with 8 PU Roller Online Wholesale

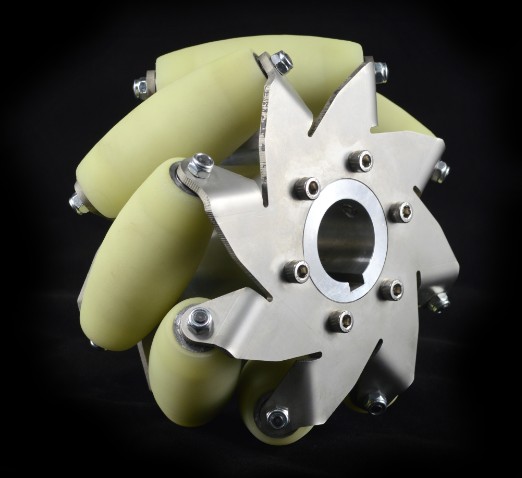

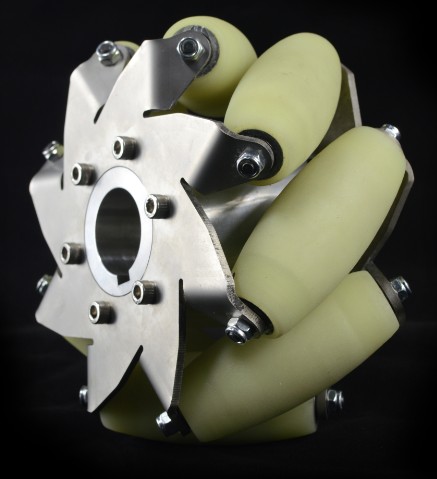

The 152mm Stainless Steel Mecanum Wheel is a heavy Duty wheel. this 6 inch Heavy Duty Mecanum Wheel include 2 Left and 2 Right wheels. Each Industrial Mecanum Wheel is comprised of 8 Rollers, these rollers have an axis of rotation at 45 to the plat of the wheel in a plane parallel to the axis of rotation of the wheel. As the 6 Inch Mecanum Wheels rotate in sync, the vehicle moves forwards or backwards normally, but by spinning pairs of wheels in opposite directions, the rollers enable sideways movement. put it all together, and you can move laterally,diagonally,or spin in a circle.

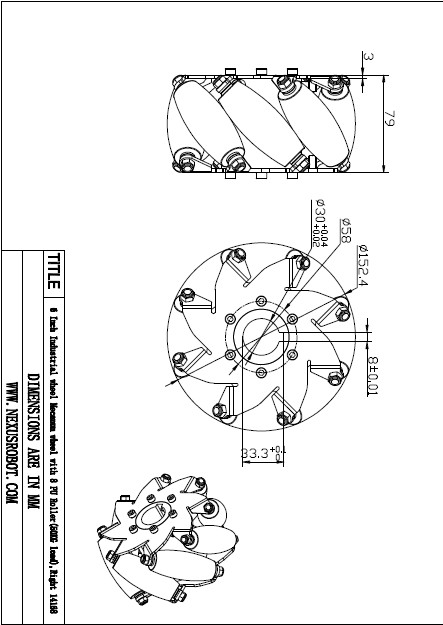

6 Inch Wheels Mecanum Wheels Specifications:
Diameter: 152mm (6 inch)
Number of Rollers: 8
Number of Plates: 2
Body material: Stainless steel
Roller material: Polyurethane
Spacer material: Aluminum
Length of roller: 77mm
Net weight: 2.3kg x4
Load capacity: 150kg
6 Inch Mecanum Wheels Packing List:

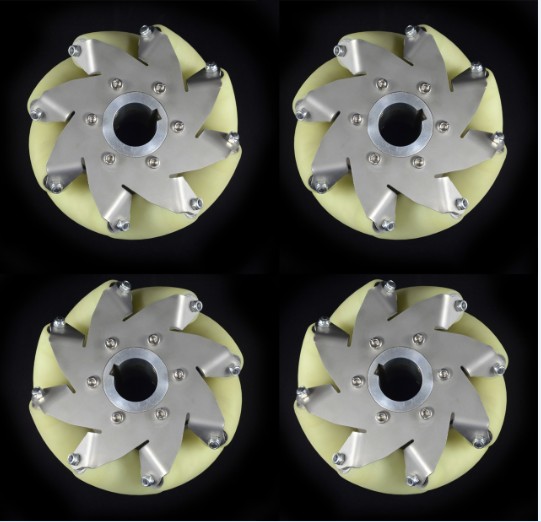

2 x Left 6 Inch Wheels Mecanum Wheels
2 x Right 6 Inch Wheels Mecanum Wheels
