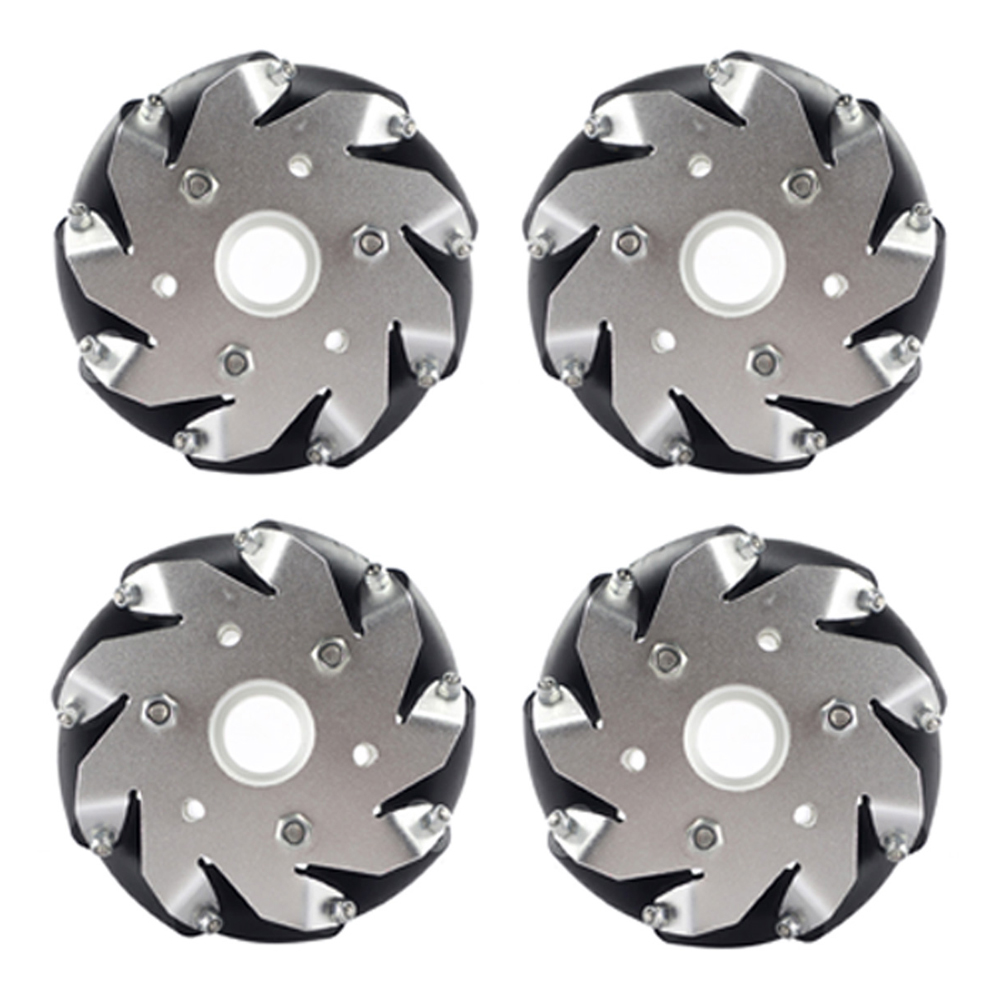

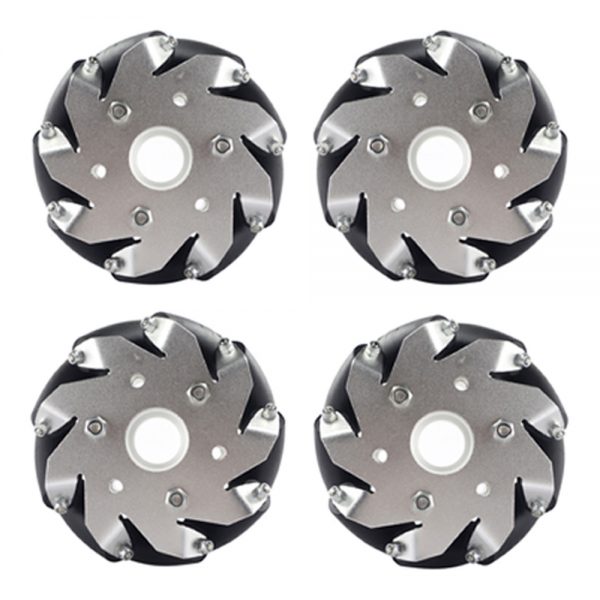

Casterbot 4 inch Mecanum wheels 100mm without Bearing Load Capacity 30kg for AGV Robot Car(4pcs/Packet)
The set of 4 inch Mecanum wheel includes 2 right mecanum wheels and 2 left mecanum wheels.
Each wheel is comprised of 9 rollers.It is driven independently. Mecanum wheel can be capable of moving in any direction,no need to change the directions the wheel spin.
Every of the four wheels contain a series of rollers which have an axis of rotation at 45°to the plane of the wheel in a plane parallel to the axis of rotation of the wheel attached to its circumference. We can provide many colors of Aluminum plates for wheels to meet your requirements.
This is a compact structure, flexible movement and durable in use omnidirectional mecanum wheel for all types of smart robot cars. Compared to other common wheels, this mecanum wheel can allow your car to achieve 360° movement for faster travel in a variety of environmental terrains. It compatible with all kinds of motor coupling,such as 6mm / 8mm / 10mm / 12mm / 16mm motor coupling. Making it easy to build an Omni-directional mobile smart AGV robot car.
4 Inch Mecanum Wheels Specifications:
Number of Mecanum wheels: 4 pcs/set
Diameter of each mecanum wheel: 100 mm
Width of each wheel: 50 mm

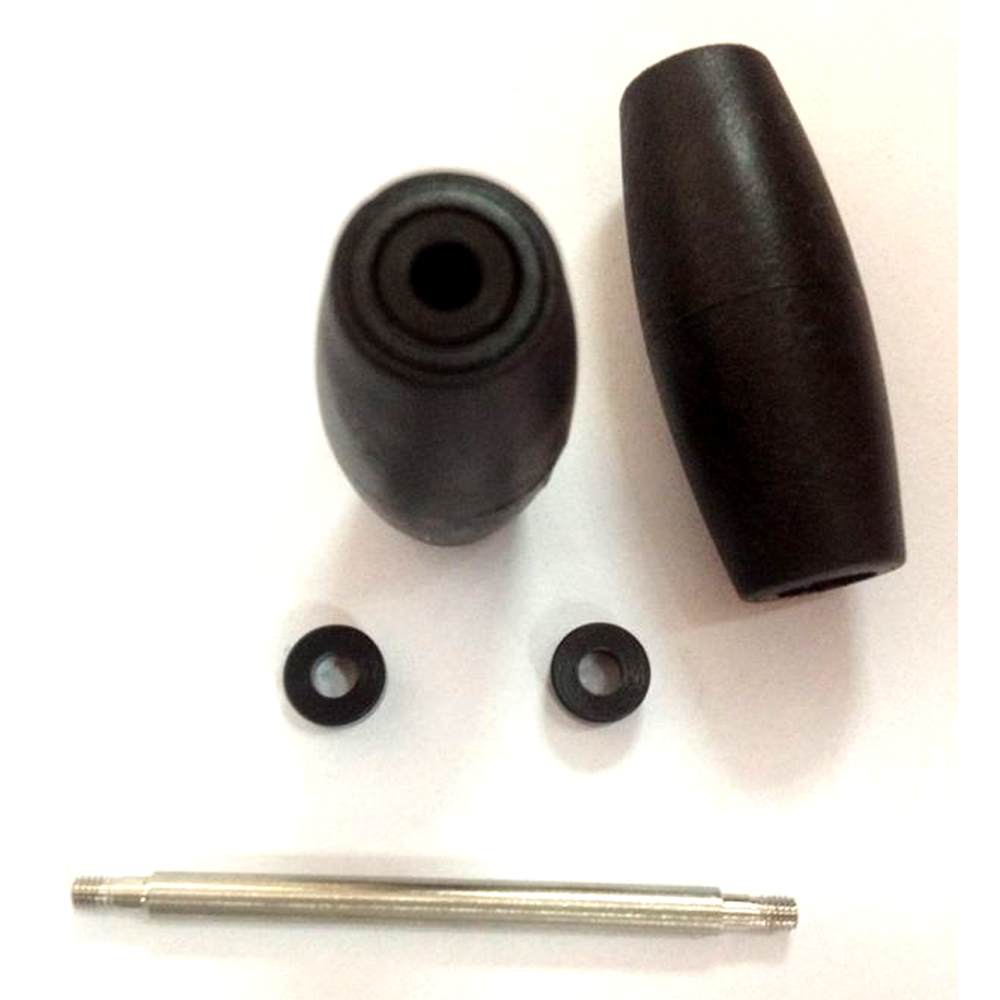

Number of Rollers each wheel: 9 pcs
Number of bearing: none
Number of Plates each wheel: 2 pcs
Body material: Aluminum alloy
Roller material: PP+PE
Spacer Material: Nylon
Length of roller:19mm
Net weight:400 g x 4
Load Capacity: 30kg/Set
4 Inch Mecanum Wheels Packing List:
2 x Right Mecanum Wheels
2 x Left Mecanum Wheels
Compatible motor coupling buy here:
6mm motor coupling C18B007
8mm motor coupling C18B008
10mm motor coupling C18B009
12mm motor coupling C18B010
16mm motor coupling C18B012
12mm Keyway motor coupling C18B017
Here to Buy 100mm Mecanum wheels with Bearing
