A set of 10inch Mecanum Wheel 254mm Mecanum Wheel with PU roller(Load cacipity 500KG) CB14197

A set of 10inch Mecanum Wheel 254mm Mecanum Wheel with PU roller(Load cacipity 500KG) CB14197

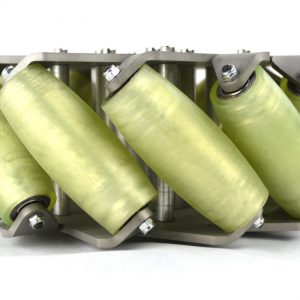

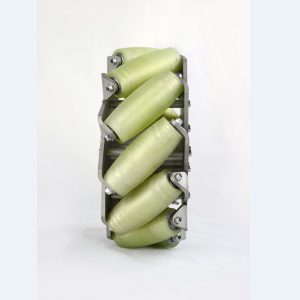

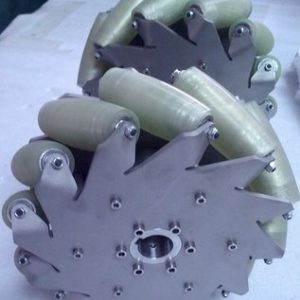

The 254mm Stainless Steel Mecanum Wheel is a Heavy Duty wheel. this 10 inch Stainless Steel Mecanum Wheel include 2Left and 2Right wheels. Each 10inch Mecanum Wheel is comprised of 12 Rollers, these rollers have an axis of rotation at 45 to the plat of the wheel in a plane parallel to the axis of rotation of the wheel. As the wheels rotate in sync, the vehicle moves forwards or backwards normally, but by spinning pairs of wheels in opposite directions, the rollers enable sideways movement. put it all together, and you can move laterally,diagonally,or spin in a circle.

10inch Mecanum Wheel Specifications:

Diameter: 254mm（10 inch)

Width: 98mm

Number of Rollers: 12

Number of Plates: 2

Body material: Stainless steel

Roller material: Polyurethane

Spacer material: Aluminum

Net weight: 6kg*4

Load capacity: 500kg/set
