6 mm Aluminum Coupling Hub CB18021 for CB14144 60mm Mecanum Wheels

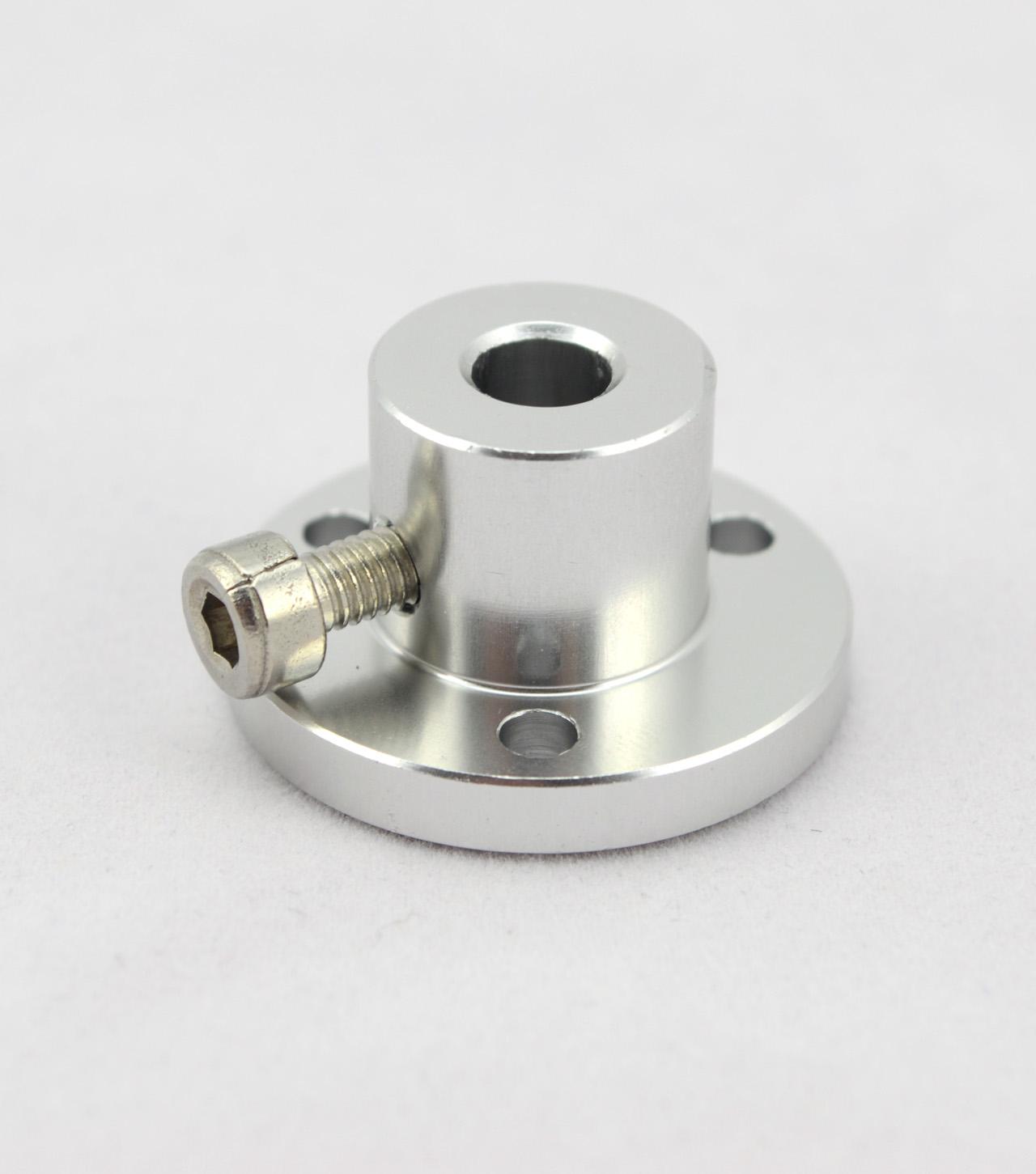

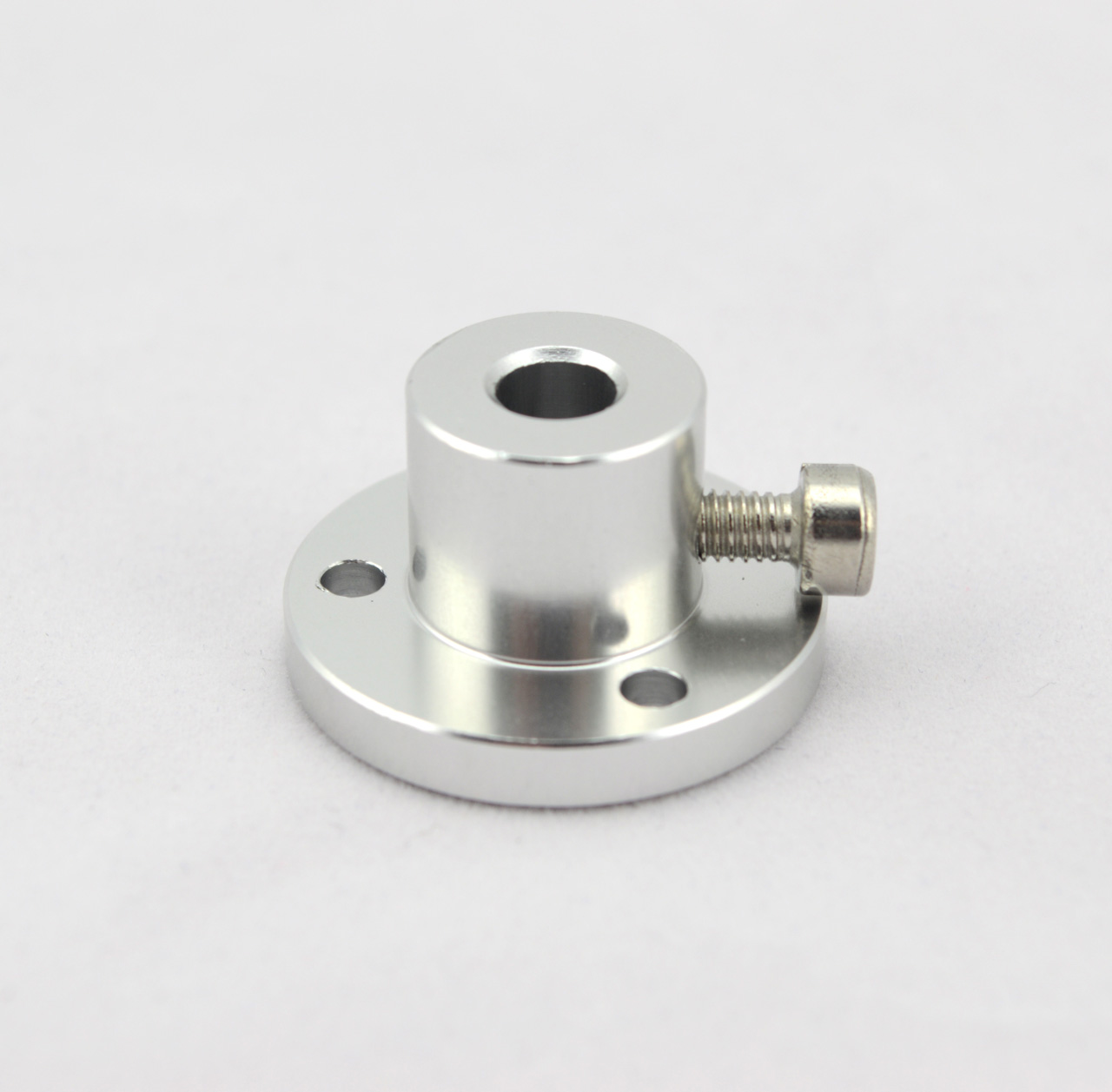

The 6 mm universal aluminum coupling hubs allows you to mount robot wheels and mechanisms to motor shafts. It was designed to connect our 60 mm Mecanum Wheel 14144 and a motor with 6 mm motor shaft. The 6 mm universal aluminum mounting hubs include one stainless steel hex socket set screw for securing a motor to the hub.

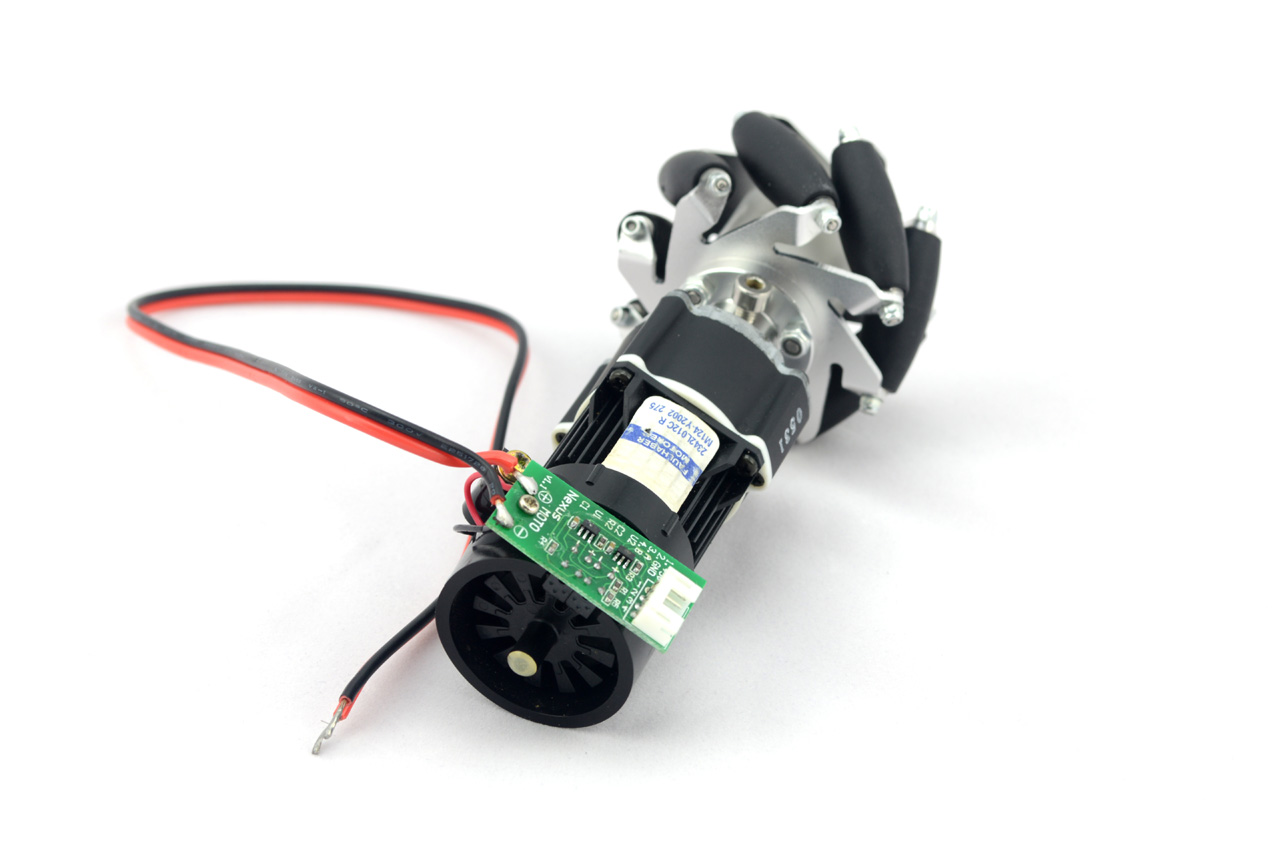

Used to connect 60 mm aluminum Mecanum Wheel and a motor

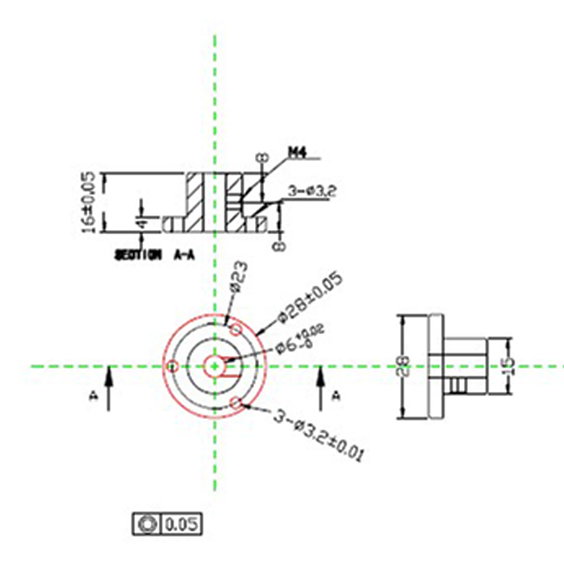

Outside diameter: 28 mm
Bore length: 16 mm
Inside diameter: 6 mm
Net weight: 12 g
1 x 6 mm coupling hubs
