CasterBot 6mm Motor Shaft Coupling Hub CB18020 for 14145 60mm omni wheel
The 6mm Motor Shaft Coupling Hubs allows you to mount robot wheels and mechanisms to motor shafts. It was designed to connect our 60 mm aluminum Omni Wheel 14145 and a motor.

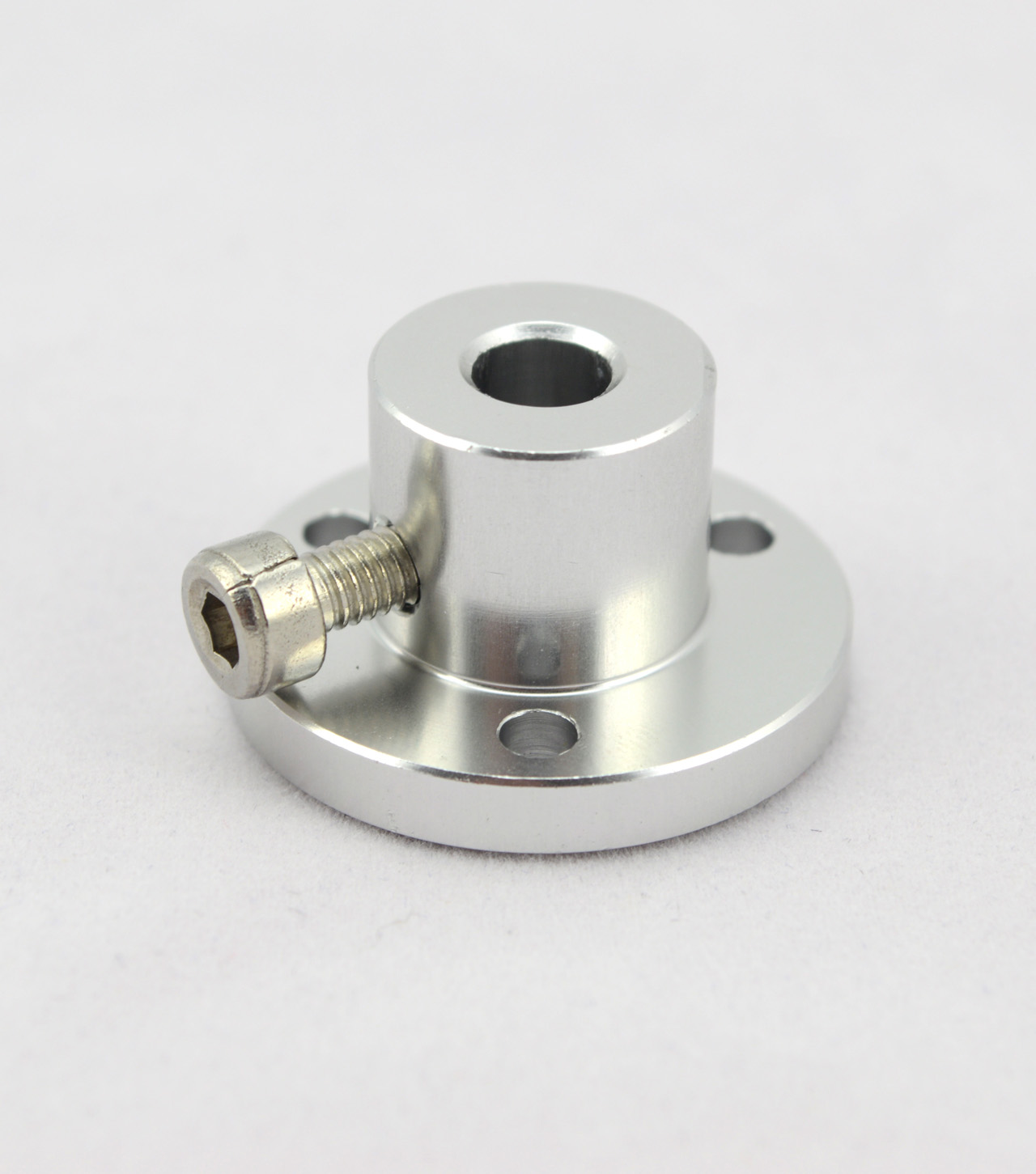

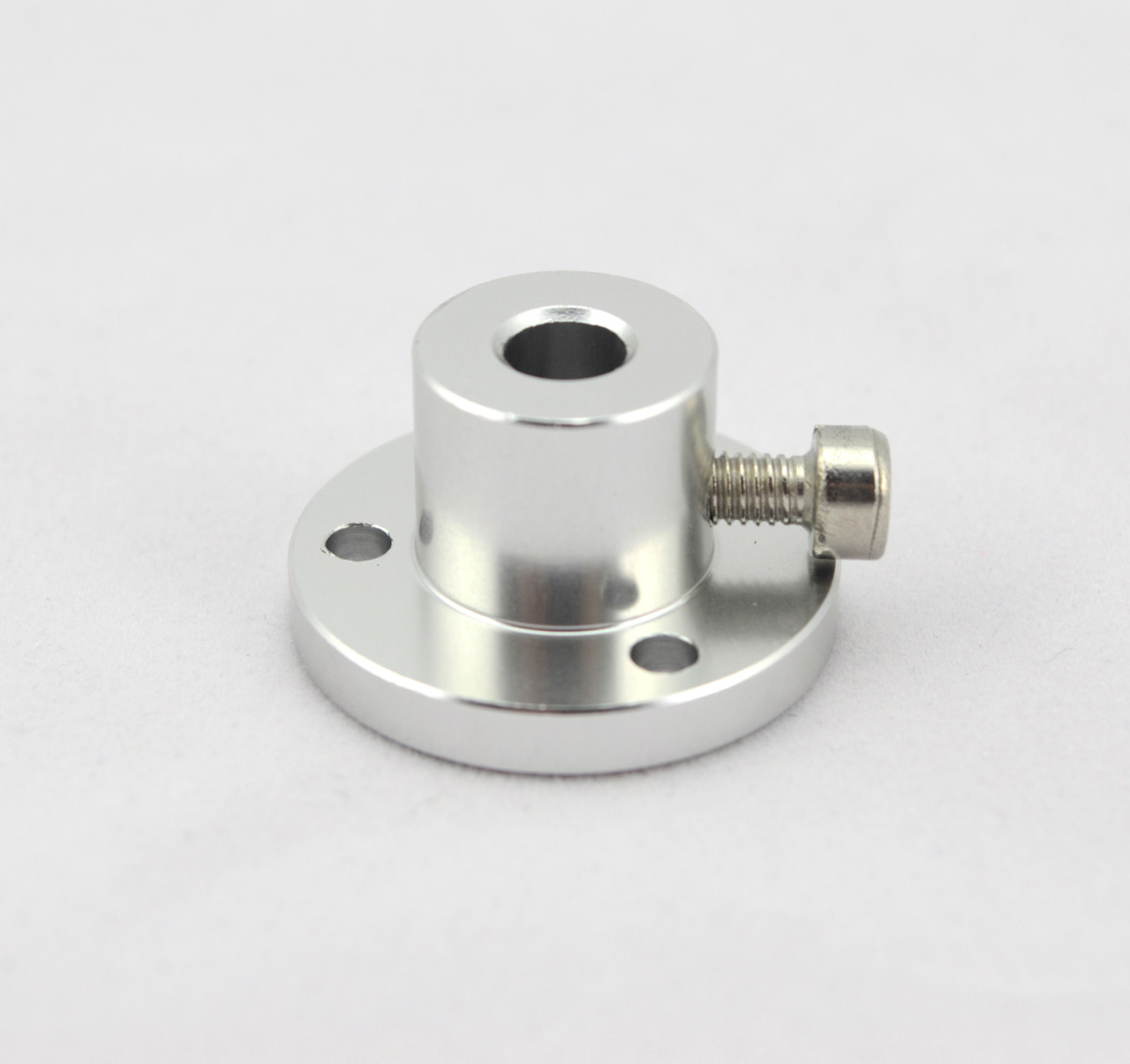

The 6 mm universal aluminum mounting hubs include one stainless steel hex socket set screw for securing a motor to the hub.
Used to connect 14145 60 mm aluminum Omni Wheel and a motor with 6mm motor shaft.

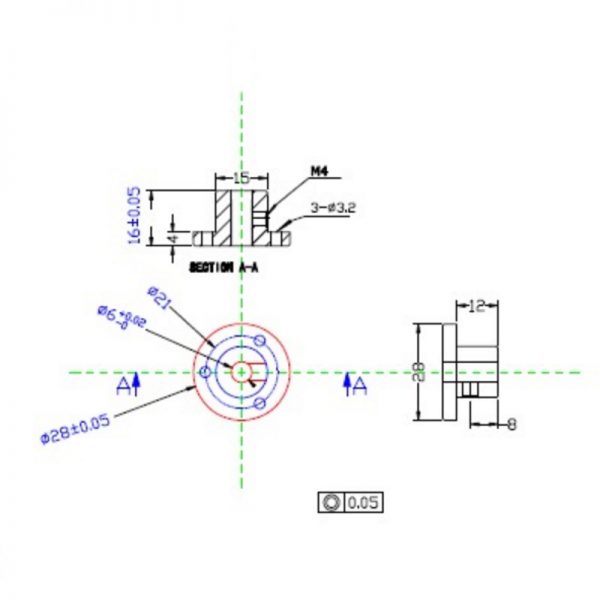

Outside diameter: 28 mm
Bore length: 16 mm
Inside diameter: 6 mm
Net weight: 12 g
1 x 6 mm Motor Shaft Coupling Hub
