HomeRobot Wheels 38mm Omni Wheels 1.5 inch Omni Wheels with 3mm Coupling CB14184.3
Previous product
A set of 15inch Heavy Duty Industrial Mecanum Wheel 375mm Mecanum Wheel CBNM375A $4,698.95 $4,298.95
Back to products
Next product
1.5 inch Omni Wheels 38mm Plastic Omni-directional Wheel for Robot Car Wheel(4 pcs/pack) $39.99

38mm Omni Wheels 1.5 inch Omni Wheels with 3mm Coupling CB14184.3

$22.95 $16.95

Diameter: 38mm
Width: 23.4mm
Axial width: 4mm
Number of plate: 2
Number of roller: 8
Body material: Plastic
Roller material: TPR
Net weight: 20g
Load capacity: 2 kg



Compare
Add to wishlist
SKU: CB14184.3 Categories: 1.5" Omni Wheel, Omni Wheels, Robot Wheels Tags: 1.5 inch Omni Wheels, 38mm Omni Wheels, Omni directional Wheel, Omni Wheels, Omni Wheels with 3mm Coupling
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
Description

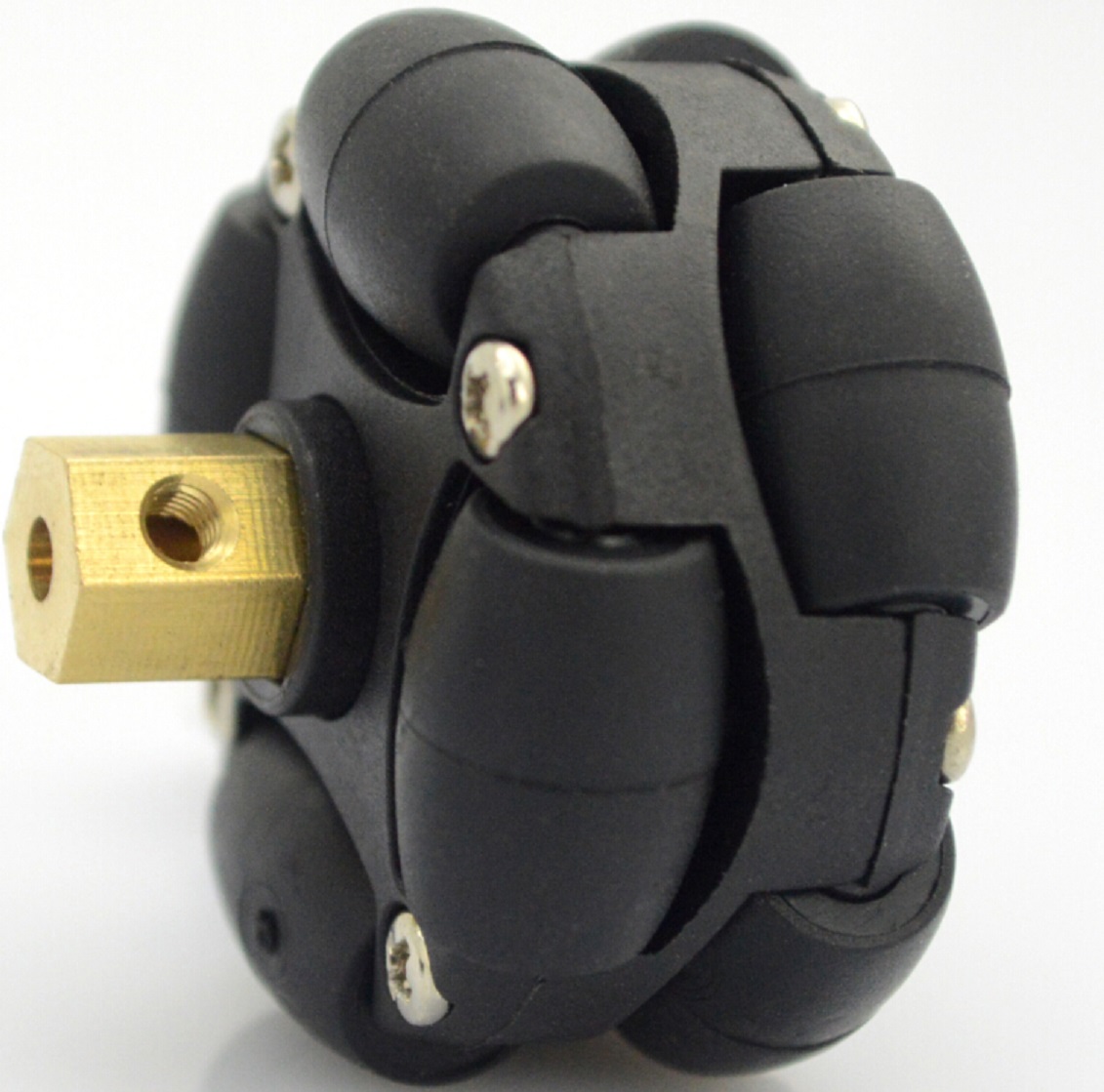

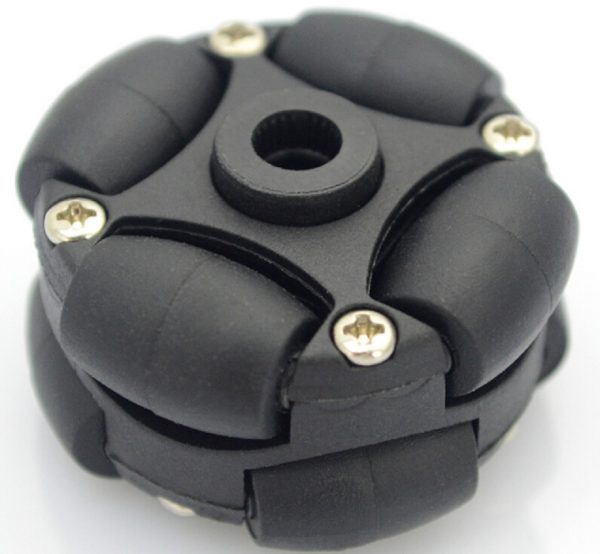

38mm Omni Wheels 1.5 inch Omni Wheels with 3mm Coupling CB14184.3

This Omni wheels is the smallest omni-directional wheel in all of CasterBot omni wheels. It is unique as they are able to roll freely in two directions.And this omni wheels 38mm has 8 PU rollers. Its rollers are more durable, robust and flexible to provide the wheel 360 degree movement easily. This omni wheel apply to the small robot cars , robot platforms, small toys and so on.

Omni wheels or poly wheels, similar to Mecanum wheel, are wheels with small discs (called rollers) around the circumference which are perpendicular to the turning direction. The effect is that the wheel can be driven with full force, but will also slide laterally with great ease. These wheels are often employed in holonomic drive systems.

Omni wheels combined with conventional wheels provide unique performance properties, such as on a six-wheeled vehicle employing two conventional wheels on a center axle and four omni wheels on front and rear axles.

1.5 inch Omni Wheels Key Features:

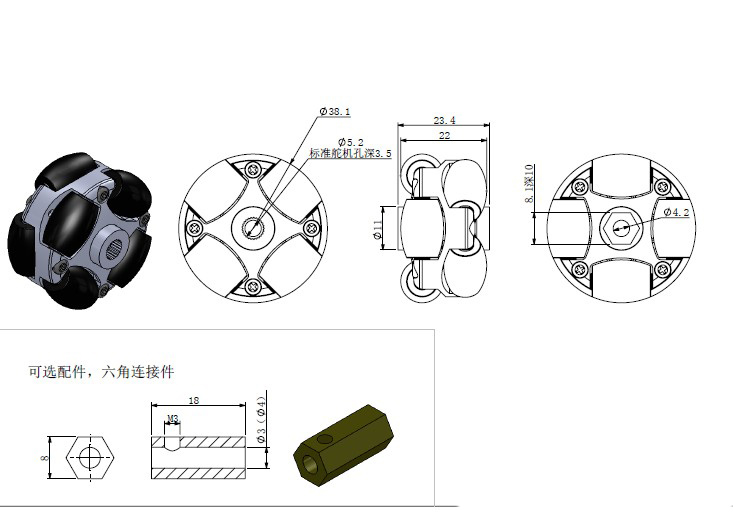

Diameter: 38mm
Width: 23.4mm
Axial width: 4mm
Number of plate: 2
Number of roller: 8
Body material: Plastic
Roller material: TPR
Net weight: 20g
Load capacity: 2 kg

1.5 inch Omni Wheels Packeting List:
1 x Double Plastic Omni Wheel 38mm (1.5inch)

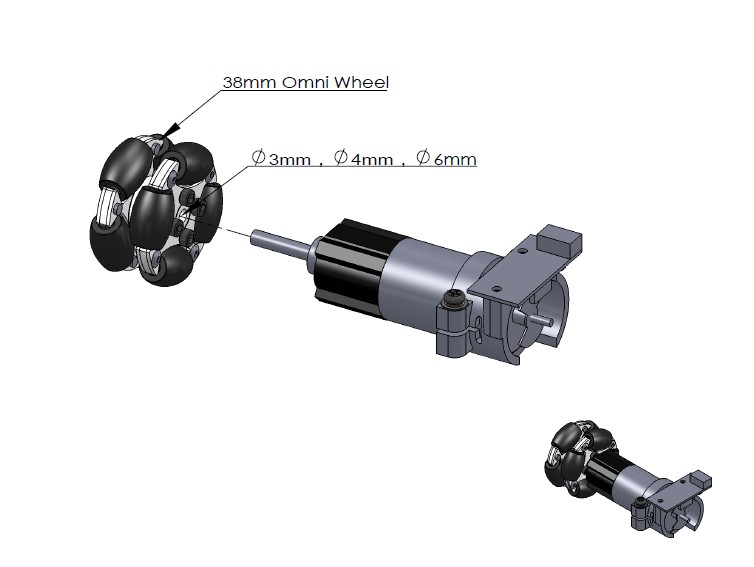

1x 3mm coupling

Additional information
Weight 0.1 kg
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “38mm Omni Wheels 1.5 inch Omni Wheels with 3mm Coupling CB14184.3” Cancel reply

You must be logged in to post a review.
